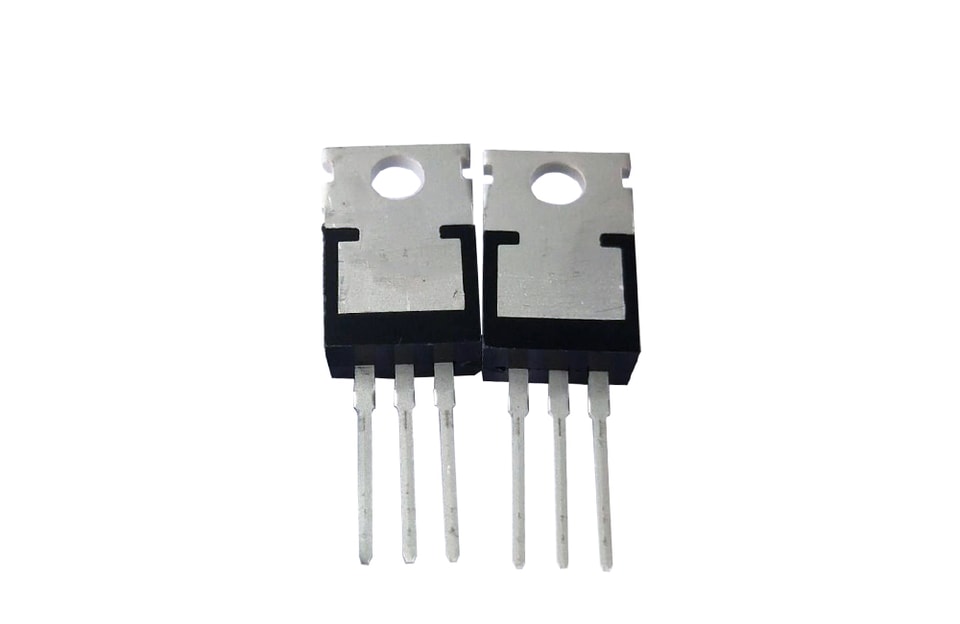

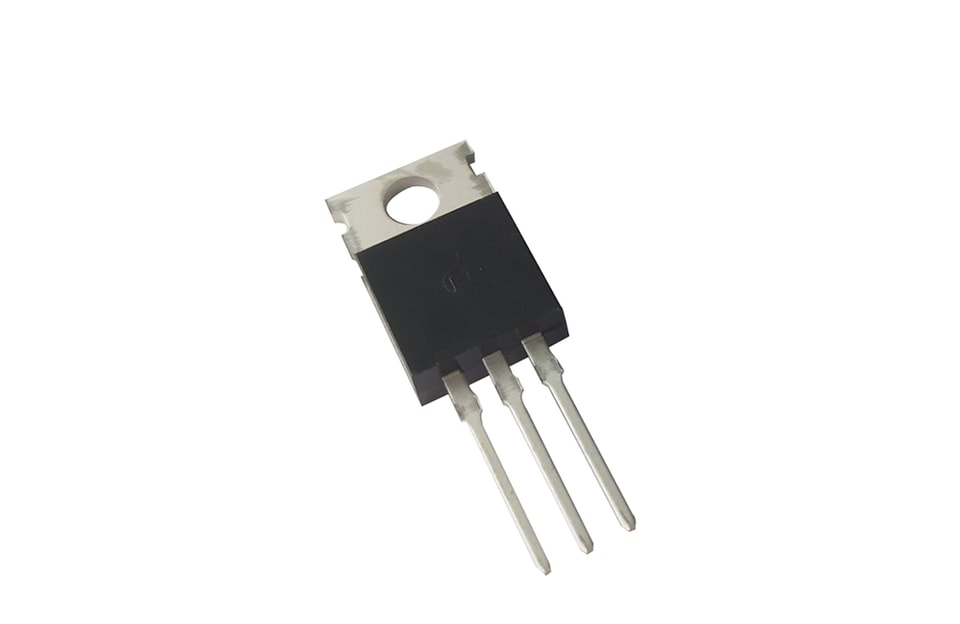

YZPST-S2535
التيريستورات المغشوشة بالزجاج في ظرف بلاستيكي، سلسلة PSTS2535SCRs مناسبة لتناسب جميع أوضاع التحكم، تُستخدم في تطبيقات مثل حماية الفولتية الزائدة، دوائر تحكم المحرك في أدوات الطاقة ومساعدات المطبخ، دوائر تحديد التيار الاندفاعي، إشعال التفريغ السعوي، تحكم محرك تيار متردد بدء التشغيل الناعم ودوائر تنظيم الجهد...
|
الرمز |
القيمة |
الوحدة |
|
أنا تي (فعال) |
40 |
أمبير |
|
فولت DRM V RRM |
1200 |
فولت |
|
أنا GT |
35 |
m أمبير |
|
المعلمة |
الرمز |
القيمة |
الوحدة |
|
مجال درجة الحرارة نطاق درجة حرارة التخزين |
Tstg |
-40 ~ 150 |
℃ |
|
نطاق درجة حرارة الاتصال التشغيلي |
Tj |
-40 ~ 125 |
℃ |
|
الجهد المتكرر الذروي في حالة الإيقاف (T =25 ℃) |
فولت DRM |
1200 |
فولت |
|
الجهد العكسي الذروي المتكرر (T =25 ℃) |
فولت R RM |
1200 |
فولت |
|
الجهد القصوى للذروة غير المتكررة في حالة عدم التواجد |
فولت DSM |
فولت DRM +100 |
فولت |
|
الجهد العكسي القصوى للذروة غير المتكررة |
فولت R SM |
فولت R RM +100 |
فولت |
|
تيار التشغيل على الحالة (T = 100 ℃) |
أنا تي (فعال) |
40 |
أمبير |
|
التيار القصوى للذروة غير المتكررة في حالة التواجد |
أنا TSM |
350 |
أمبير |
|
التيار المتوسط في الحالة الموصلة (زاوية القيادة 180 درجة) |
أنا T(AV) |
25 |
أمبير |
|
أنا 2 قيمة t للانصهار (tp=10ms) |
أنا 2 t |
450 |
أمبير 2 S |
|
معدل الارتفاع الحرج للتيار في الحالة الموصلة (I =2×IGT , tr ≤ 100 نانوثانية ) |
dI/dt |
15 0 |
A/μS |
|
تيار بوابة الذروة |
أنا GM |
4 |
أمبير |
|
القدرة المتوسطة المفقودة عند البوابة |
P G(AV) |
1 |
واط |
الخصائص الكهربائية (T=25℃ ما لم يُحدد خلاف ذلك)
|
الرمز |
شرط الاختبار |
|
القيمة |
الوحدة |
|
أنا GT |
V =12V R =140Ω |
الحد الأقصى |
35 |
m أمبير |
|
فولت GT |
الحد الأقصى |
1.3 |
فولت |
|
|
فولت GD |
فولت D =V DRM Tj=125℃ R=1KΩ |
MIN. |
0. 2 |
فولت |
|
أنا L |
أنا G =1.2I GT |
الحد الأقصى |
75 |
mA |
|
أنا H |
IT=50mA |
الحد الأقصى |
50 |
mA |
|
dV/dt |
فولت D =2/3V DRM Gate Open Tj=125℃ |
MIN. |
500 |
V/μs |
