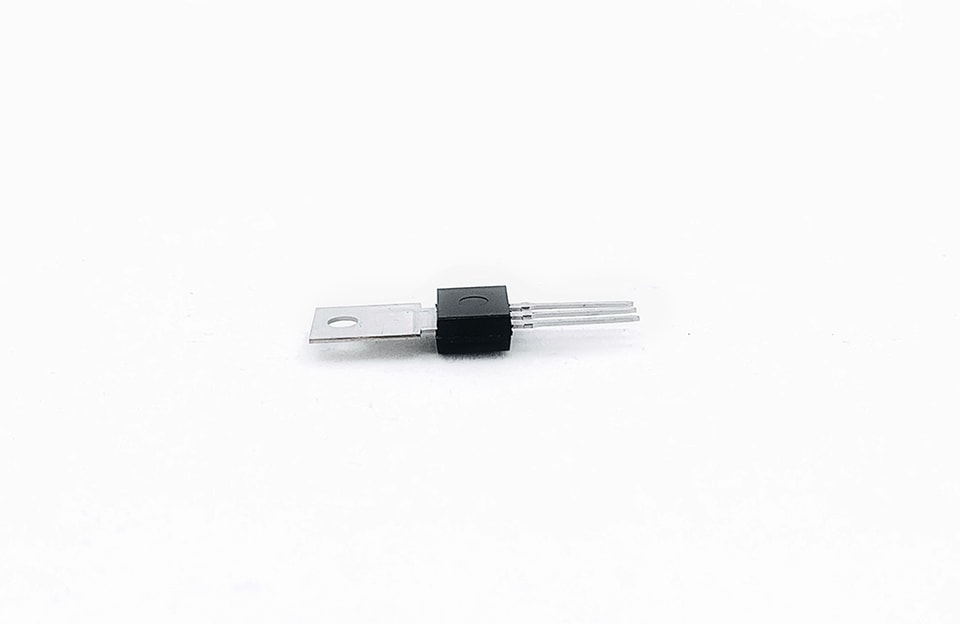

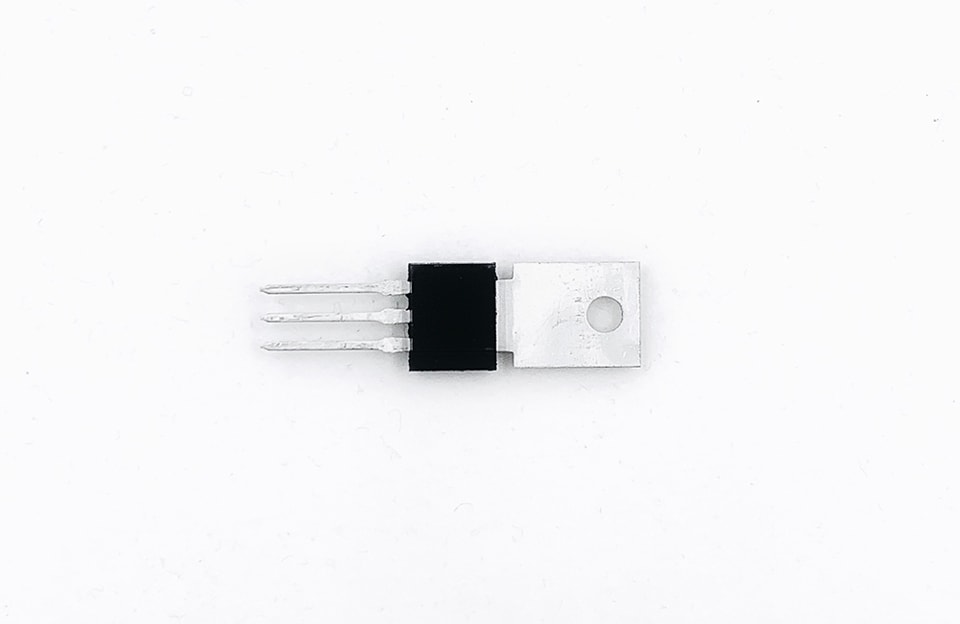

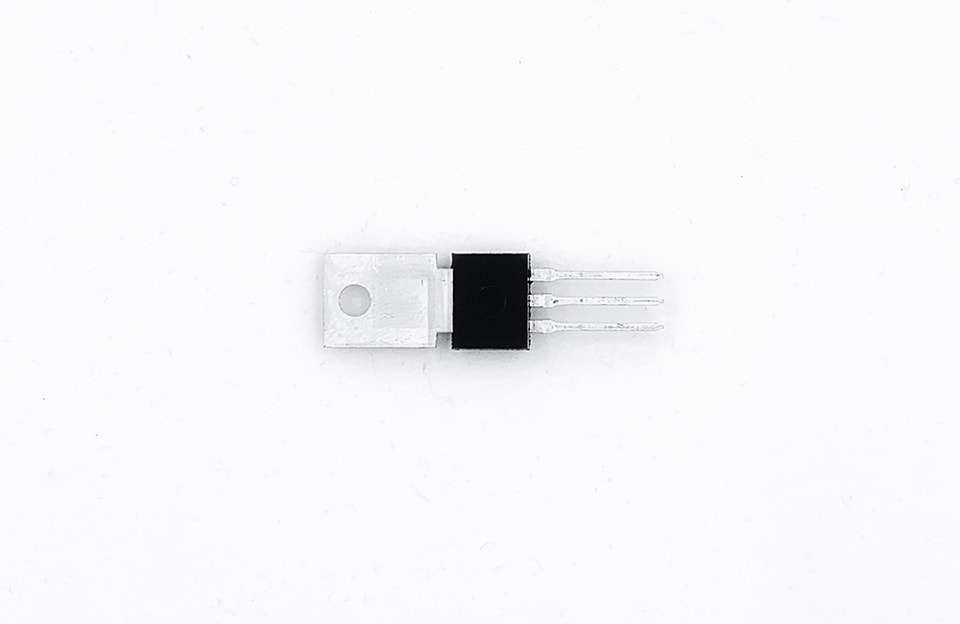

YZPST-X0405 (مع مشتت حراري)
نصيحة: أدرج رقم القطعة، والجهد/التيار المستهدف، وبيئة التطبيق.
التنزيلات والملفات الفنية
بفضل مستويات التحفيز العالية الحساسية، فإن سلسلة X0405 من الثايرستورات المناسبة لجميع التطبيقات التي تكون فيها تيار البوابة المتاح محدودًا، مثل قواطع تسرب الأرضي، وحماية القفز ضد زيادة الجهد في مزودات الطاقة منخفضة القدرة، ودوائر الإشعال السعوية.
الرمز | القيمة | الوحدة |
تيار الحالة المستقرة الفعال | 4.0 | A |
VDRM VRRM | 600 | V |
IGT | 200 | µA |
المعلمة | الرمز | القيمة | الوحدة |
نطاق درجة حرارة الوصلة للتخزين | Tstg | -40 ~150 | ℃ |
نطاق درجة حرارة الوصلة أثناء التشغيل | Tj | -40~125 | ℃ |
جهد الإيقاف العكسي الأقصى التكراري (T =25℃) | VDRM | 600 | V |
جهد الانعكاس الأقصى التكراري (T =25℃) | VRRM | 600 | V |
جهد الإيقاف الأقصى للنبضة غير التكرارية | VDSM | VDRM +100 | V |
جهد الذروة العكسي غير المتكرر | VRSM | VRRM +100 | V |
تيار الحالة الفعّال أثناء التوصيل (T =60℃) | تيار الحالة المستقرة الفعال | 4.0 | A |
تيار الذروة غير التكراري أثناء التوصيل (زاوية توصيل 180°، F=50Hz) | ITSM | 30 | A |
متوسط تيار التوصيل (زاوية توصيل 180°) | IT(AV) | 2.5 | A |
قيمة I²t للانصهار (tp=10ms) | I2t | 4.5 | A2S |
المعدل الحرج لارتفاع تيار التوصيل (I =2×IGT، tr ≤ 100 ns) | dI/dt | 50 | A/μS |
تيار البوابة الأقصى | IGM | 1.2 | A |
متوسط تبديد القدرة في البوابة | PG(AV) | 0.2 | W |
الرمز | شرط الاختبار | القيمة | الوحدة | |
IGT | V =12V R =140Ω | الحد الأقصى | 200 | µA |
VGT | الحد الأقصى | 0.8 | V | |
VGD | VD=VDRM Tj=125℃ R=1KΩ | الحد الأدنى | 0.1 | V |
IL | IG=1.2IGT | الحد الأقصى | 6 | mA |
IH | IT=50mA | الحد الأقصى | 5 | mA |
dV/dt | VD=2/3VDRM Gate Open Tj=125℃ | الحد الأدنى | 15 | V/μs |
الخصائص الساكنة
الرمز | المعلمة | القيمة (الحد الأقصى) | الوحدة | |
VTM | ITM =8.0A tp=380μs | Tj =25℃ | 1.8 | V |
IDRM | VD=VDRM VR=VRRM | Tj =25℃ | 5 | μA |
IRRM | Tj =125℃ | 1 | mA | |
المقاومات الحرارية
| الرمز | المعلمة | القيمة (الحد الأقصى) | الوحدة |
Rth(j-a) | من الوصلة إلى المحيط | 60 | ℃/W |
Rth(j-t) | من الوصلة إلى اللسان (تيار مستمر) | 20 |
مخطط معلومات الطلب
يمكن لـ YZPST توفير قائمة المعادلات التالية لـ SCR وثايراك.
2P4M | BT2588 | Q6006 | SCF6C60 | TS820 |
2P6M | BY169 | Q8006 | S6012 | TS420 |
25TTS16 | BT169 | Q6008 | S8012 | TYN612 |
40TPS16 | BT151S | Q8008 | S8016 | TYN616 |
70TPS16 | BT148W | Q6010 | SCF25C60 | TYN816 |
BT148S | Q8010 | S6025 | TYN620 | |
CR08AS | BT151 | Q6016 | S8025 | TYN820 |
C106 | BT152 | Q8016 | SK025 | TYN1025 |
CS30 | BTW69 | Q6025 | S6035 | TYN1225 |
CS45 | BT131 | Q8025 | S8035 | TYN630 |
CS60-16i01 | BT134 | QK025 | SK035 | TYN830 |
BT136 | Q6040 | S6040 | TYN640 | |
MCR100-6 | BCR2PM | Q8040 | S8040 | TYN840 |
MCR100-8 | BTA01 | QK040 | S6055 | T405 |
MCR706 | BTB04 | S8055 | T410 | |
MCR72-6/8 | BTA06 | SK055 | T435 | |
MCR22 | BTB06 | STN1A60 | T805 | |
MAC97A6 | BTA08 | STN1A80 | T810 | |
MAC97A8 | BTB08 | STF4A60 | T835 | |
BT137 | STF6A60 | TMG8C60 | ||
FS0102MA | BTA10 | STF08 | TMF12C60 | |
BTB10 | STF12A60 | T1235 | ||
X0405 | BTA16 | TMG16C60 | ||
X0805 | BTB16 | TIC246 | ||
X0205 | BT139 | T1620 | ||
BTA216 | T1635 | |||
Z00607 | BTA20 | TMG20C60 | ||
Z0103 | BTB20 | T2535 | ||
Z0107 | BTA24 | TMG25CQ60 | ||
Z0405 | BTB24 | |||
Z0409 | BTA140 | |||
BTA26 | ||||
BTB26 | ||||
BTA41 | ||||
BTB41 |
