YZPST-BTB41-1600V

✓المعلومات الفنية للمنتج✓دعم اختيار موجه للتطبيق✓استفسار عبر الكتالوج والمتطلبات

البريد الإلكترونيinfo@yzpst.net

الهاتف+86 138 0527 8321

اطلب عرض سعر فني↗

نصيحة: أدرج رقم القطعة، والجهد/التيار المستهدف، وبيئة التطبيق.

مركز المستندات

التنزيلات والملفات الفنية

YZPST-BTA41-1600VAC.pdfتنزيل ↘YANGZHOU POSITIONING TECH CO Power thyristor and diode parts 20200518.pdfتنزيل ↘

http://www.youtube.com/channel/UCZ3mV8GmGNcX4WcYEoWX-_g/featured

ميزات المنتج

بنية مزدوجة المسار (Double Mesa)،

عملية تخميل زجاجية سطحية،
ثبات عالي الجهد
قدرة قوية على مقاومة الصدمات التيار العالية
النماذج المناسبة: BTA41/BTB41.
الاستخدام الرئيسي
الغسالة، المكنسة الكهربائية
مرحل الحالة الصلبة، التحكم في سرعة محرك التيار المتردد
مفتاح تلامسي للتيار المتردد، معدات اللحام

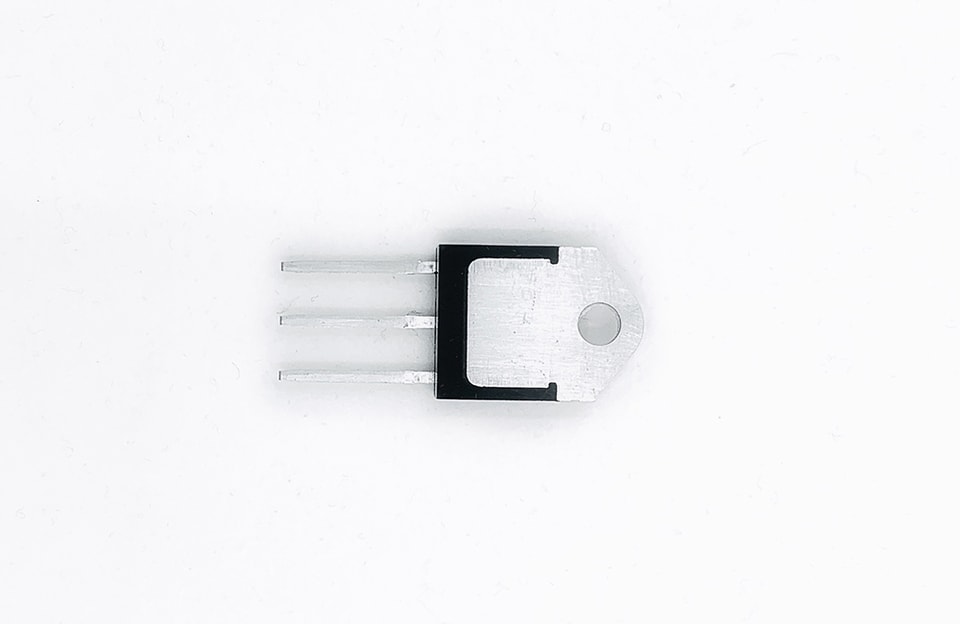

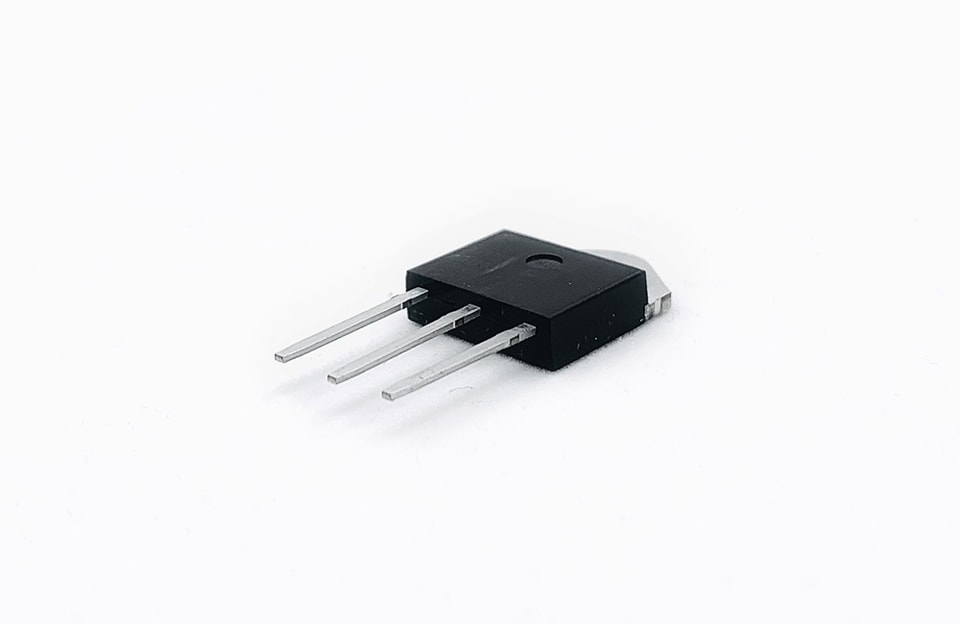

الحزمة
TO-3P

الخصائص الرئيسية (Tj=25℃)

الرمز	القيمة	الوحدة
تيار الحالة المستقرة الفعال	40	A
VDRM / VRRM	1600/1600	V
VTM	1.55	V

القيم المطلقة القصوى (القيم المحدِّدة)

الرمز	المعلمة	القيمة	الوحدة
ITSM	قمة تيار الحالة المستقرة غير المتكرر أثناء النبضة التيار (tp=10ms)	400	A
I2t	(tp=10ms)	800	A2S
dI/dt	IG=2IGT، tr≤100ns، Tj=125℃	50	A/μs
IGM	تيار البوابة الأقصى (tp=20us)	8	A
PG(AV)	متوسط قدرة البوابة	1	W
Tstg Tj	درجة حرارة التخزين درجة حرارة وصلة التشغيل	-40--+150 -40--+125	℃

المقاومات الحرارية

الرمز	المعلمة		القيمة	الوحدة
Rth (j-c)	من الوصلة إلى الغلاف	TO-3P	0.9	℃/W

الخصائص الكهربائية (Tj=25℃ ما لم يُذكر خلاف ذلك)

الرمز	شروط الاختبار		القيمة	الوحدة
IGT	VD=12V, RL=30Ω	ⅠⅡⅢ	≤50	mA
IGT	VD=12V, RL=30Ω	Ⅳ	------	mA
IDRM	VD=VDRM	Tj=25℃	≤5	μA
IDRM	VD=VDRM	Tj=125℃	≤5	mA
IRRM	VD=VRRM	Tj=25℃	≤5	μA
IRRM	VD=VRRM	Tj=125℃	≤5	mA
IL	IG=1.2IGT	ⅠⅢ	≤70	mA
IL	IG=1.2IGT	Ⅱ	≤160	mA
VGT	VD=12V ,RL=30Ω		≤1.5	V
VGD	VD=VDRM، Tj=125℃ RL=3.3KΩ		≥0.2	V
VTM	ITM=60A، tp=380μs		1.55	V
IH	VD=12V، IT=500mA		≤80	mA
dV/dt	VD=67%VDRM، البوابة مفتوحة، Tj=125℃		≥800	فولت/ميكروثانية

أبعاد العبوة TO-3P

يمكن لـ YZPST توفير قائمة المعادلات التالية لـ SCR وثايراك.

2P4M	BT2588	Q6006	SCF6C60	TS820
2P6M	BY169	Q8006	S6012	TS420
25TTS16	BT169	Q6008	S8012	TYN612
40TPS16	BT151S	Q8008	S8016	TYN616
70TPS16	BT148W	Q6010	SCF25C60	TYN816
	BT148S	Q8010	S6025	TYN620
CR08AS	BT151	Q6016	S8025	TYN820
C106	BT152	Q8016	SK025	TYN1025
CS30	BTW69	Q6025	S6035	TYN1225
CS45	BT131	Q8025	S8035	TYN630
CS60-16i01	BT134	QK025	SK035	TYN830
	BT136	Q6040	S6040	TYN640
MCR100-6	BCR2PM	Q8040	S8040	TYN840
MCR100-8	BTA01	QK040	S6055	T405
MCR706	BTB04		S8055	T410
MCR72-6/8	BTA06		SK055	T435
MCR22	BTB06		STN1A60	T805
MAC97A6	BTA08		STN1A80	T810
MAC97A8	BTB08		STF4A60	T835
	BT137		STF6A60	TMG8C60
FS0102MA	BTA10		STF08	TMF12C60
	BTB10		STF12A60	T1235
X0405	BTA16			TMG16C60
X0805	BTB16			TIC246
X0205	BT139			T1620
	BTA216			T1635
Z00607	BTA20			TMG20C60
Z0103	BTB20			T2535
Z0107	BTA24			TMG25CQ60
Z0405	BTB24
Z0409	BTA140
	BTA26
	BTB26
	BTA41
	BTB41

TN1215-600H	T835-600G	T1235H6G	Z00607MN
TN1215T-600B	T810T-61	T1250H6G	Z00607MA
TN1215-600B	T835T-61	T1235H6I	Z0103MN
TYN612MFP	T830-600W	T1250H6I	Z0107MN
TN1215-800H	TXDV608	T1235H6T	Z0109MN
TN1215-800B	T810-800H	T1250H6T	Z0103MA
TYN812	T835-800H	T1235T-8T	Z0107MA
TYN610	T810-800B	T1235T-8FP	Z0109MA
TYN810	T835-800B	T1635H6G	Z0405MF
TYN612T	T810-800G	T1650H6G	Z0409MF
TYN612M	T835-800G	T1635H6I	Z0410MF
TN1215-600G	T830-800W	T1650H6I	Z0405NF
TN1215-800G	T830-8FP	T1635H6T	Z0409NF
TN1625-600G	TXDV808	T1650H6T	Z0410NF
TN1625-800G	T1210-600G	T1625T-8I
TN2540-600G	T1235-600G	T1635T-8I	ACS102-6TA
TXN625	T1250-600G	T1635T-8T	ACS108-6SN
TYN625	T1210T-6I	T1635T-8FP	ACS110-7SN
TN2540-800G	T1235T-6I	T2035H6G	ACS108-6SA
TXN825	TXDC612	T2050H6G	ACST210-8B
TYN825	T1210-800G	T2035H6I	ACST210-8FP
TYN1225	T1235-800G	T2050H6I	ACST410-8B
TYN640	T1250-800G	T2035H6T	ACST310-8B
TYN840	T1610-600G	T2050H6T	ACST435-8B
T405-600H	T1635-600G	T3035H6I	ACST410-8FP
T410-600H	T1610T-6I	T3050H6I	ACST310-8FP
T435-600H	T1635T-6I	T3035H6T	ACST435-8FP
T405-600B	T1620-600W	T3050H6T	ACST830-8T
T410-600B	T1630-600W		ACST830-8FP
T435-600B	T1610-800G	TYN16-600CT	ACST1010-7T
T405-600T	T1635-800G	TYN16-600RT	ACST1035-7T
T410-600T	T1620-800W	TYN16X-600CT	ACST1010-7FP
T435-600T	T1630-800W	TYN16X-600RT	ACST1035-7FP
T405-600W	T2535-600G	TYN16-800RT	ACST1210-7T
T410-600W	T2535-800G	TYN16X-800RT	ACST1235-7T
T435-600W	T2550-12G	TYN20X-T	ACST163S-8FP
T435T-600FP	T2550-12T
T405-800H	T405Q-600H	MAC97A6	ACT108W-600D
T410-800H	T405Q-600B	MAC97A8	ACT108-600D
T435-800H	T635T-8T	MAC223A8X	ACT108W-600E
T405-800B	T635T-8FP	MAC223A6	ACTT2S-800E
T410-800B	T835H6G		ACTT2X-800E
T435-800B	T850H6G		ACTT4S-800E
T405-800T	T835H6T		ACTT4S-800C
T410-800T	T835H6I		ACTT8B-800C0
T435-800T	T850H6I		ACTT8-800C0
T405-800W	T835T-8T		ACTT8X-800C0
T410-800W	T850H6T		ACTT10-800C
T435-800W	T835T-8FP		ACTT10X-800C
T810-600H			ACTT12B-800C
T835-600H			ACTT12-800C
T810-600B			ACTT12X-800C
T835-600B			ACT108-600E
T810-600G

BT151U-650C	BTA204X-800E	BTA212-600B	BTA216-600BT
BT151U-500C	BTA204X-800C	BTA312-600B	BTA316-600B
BT151S-650R	BTA204X-800B	BTA212X-600D	BTA316-600B0
BT151S-500R	BTA206-800ET	BTA312X-600D	BTA216X-600E
BT151B-650R	BTA206-800CT	BTA212X-600E	BTA316X-600E
BT151-650R/L	BTA206X-800ET	BTA312X-600E	BTA216X-600F
BT151-500R/L	BTA206X-800CT	BTA212X-600F	BTA316X-600C
BT151-650C	BTA208S-600D	BTA312X-600C	BTA216X-600B
BT151X-500R	BTA208S-600E	BTA212X-600B	BTA316X-600B
BT151X-650R	BTA208S-600F	BTA312X-600B	BTA316B-800E
BT151U-800C	BTA208S-600B	BTA212B-800D	BTA316B-800C
BT151S-800R	BTA208B-1000C	BTA212B-800E	BTA216B-800B
BT151B-800R	BTA208-600D	BTA312B-800E	BTA316B-800B
BT151-800R	BTA208-600E	BTA212B-800F	BTA416Y-800C
BT151X-800R	BTA208-600F	BTA312B-800C	BTA416Y-800B
BT152-600R	BTA208-600B	BTA212B-800B	BTA316-800E
BT152-400R	BTA208X-600D	BTA312B-800B	BTA316-800C
BT152-500RT	BTA208X-600E	BTA312Y-800C	BTA216-800B
BT152X-600R	BTA208X-600F	BTA412Y-800B	BTA316-800B
BT152-800R	BTA208X-600B	BTA412Y-800C	BTA316X-800E
BT152X-800R	BTA208S-800E	BTA212-800D	BTA316X-800C
BT145-800R	BTA208S-800F	BTA212-800E	BTA216X-800B
BT155K-1200T	BTA208S-800B	BTA312-800E	BTA316X-800B
BTA204W-600D	BTA208-800D	BTA212-800F	BTA420Y-800CT
BTA204W-600E	BTA208-800E	BTA312-800C	BTA420Y-800BT
BTA204W-600C	BTA208-800C	BTA212-800B	BTA420-800CT
BTA204W-600B	BTA208-800B	BTA312-800B	BTA420-800BT
BTA204W-800D	BTA208X-800E	BTA212X-800D	BTA420X-800CT
BTA201W-800E	BTA208X-800C	BTA212X-800E	BTA420X-800BT
BTA201W-800C	BTA308X-800C	BTA312X-800E	BTA225B-600B
BTA201W-800B	BTA208X-800B	BTA212X-800F	BTA225-600B
BTA204S-600D	BTA308X-800B	BTA312X-800C	BTA225B-800B
BTA204S-600E	BTA212B-600D	BTA212X-800B	BTA425Y-800CT
BTA204S-600C	BTA312B-600D	BTA312X-800B	BTA425Y-800BT
BTA204S-600B	BTA212B-600E	BTA216B-600D	BTA225-800C
BTA204-600D	BTA312B-600E	BTA216B-600E	BTA225-800B
BTA204-600E	BTA212B-600F	BTA316B-600E	BTA425X-800BT
BTA204-600C	BTA312B-600C	BTA216B-600F	BT1308W-400D
BTA204-600B	BTA212B-600B	BTA316B-600C	BT1308W-600D
BTA204X-600D	BTA312B-600B	BTA216B-600B	BT131W-600
BTA204X-600E	BTA312Y-600C	BTA316B-600B	BT131W-600D
BTA204X-600C	BTA412Y-600C	BTA416Y-600C	BT134-600E
BTA204X-600B	BTA412Y-600B	BTA416Y600B	BT134-800D
BTA204S-800E	BTA212-600D	BTA216-600D	BT134-800E
BTA204S-800C	BTA312-600D	BTA316-600D	BT134-800
BTA204S-800B	BTA212-600E	BTA216-600E	BT136S-600D
BTA204-800E	BTA312-600E	BTA316-600E	BT136S-600E
BTA204-800C	BTA212-600F	BTA216-600F	BT136S-600F
BTA204-800B	BTA312-600C	BTA316-600C	BT136B-600E

BT234-600D	BTA08-600TW	BTA20-600CW	BTA16-600C
BT136-600D	BTA08-600SW	BTA20-600BW	BTA16-600B
BT234-600E	BTA08-600CW	BTB20-600CW	BTB16-600C
BT136-600E	BTA08-600BW	BTB20-600BW	BTB16-600B
BT136-600F	BTB08-600TW	BTA20-800CW	BTA16-800C
BT234X-600D	BTB08-600SW	BTA20-800BW	BTA16-800B
BT136X-600D	BTB08-600CW	BTB20-800CW	BTB16-800C
BT136X-600E	BTB08-600BW	BTB20-800BW	BTB16-800B
BT136X-600F	BTA08-800TW	BTA24-600CW	BTA24-600B
BT136S-800D	BTA08-800SW	BTA24-600BW	BTB24-600B
BT136S-800E	BTA08-800CW	BTB24-600CW	BTA24-800B
BT136B-800E	BTA08-800BW	BTB24-600BW	BTB24-800B
BT234-800D	BTB08-800TW	BTA24-800CW	BTA25-600B
BT136-800D	BTB08-800SW	BTA24-800BW	BTA25-800B
BT234-800E	BTB08-800CW	BTB24-800CW	BTA41-600B
BT136-800E	BTB08-800BW	BTB24-800BW	BTA40-600B
BT234X-800D	BTA12-600TW	BTA25-600CW	BTA41-800B
BT136X-800D	BTA12-600SW	BTA25-600BW	BTA40-800B
BT234X-800E	BTA12-600CW	BTA25-800CW
BT136X-800E	BTA12-600BW	BTA25-800BW	BT137S-600D
BT236X-600F	BTB12-600TW	BTA26-600CW	BT137S-600E
BT236X-600G	BTB12-600SW	BTA26-600BW	BT137S-600F
BT236X-800F	BTB12-600CW	BTA26-800CW	BT137-600E
BT236X-800G	BTB12-600BW	BTA26-800BW	BT137B-600E
BTW69-600	BTA12-800TW	BTB04-600SL	BT137B-600F
BTW67-600	BTA12-800SW	BTA06-600C	BT137-600D
BTW69-800	BTA12-800CW	BTA06-600B	BT137-600F
BTW67-800	BTA12-800BW	BTB06-600C	BT137X-600D
BTW69-1200	BTB12-800TW	BTB06-600B	BT137X-600E
BTW69-1200N	BTB12-800SW	BTA06-800C	BT137X-600F
BTW67-1200	BTB12-800CW	BTA06-800B	BT138B-600D
BTA06-600TW	BTB12-800BW	BTB06-800C	BT138B-600E
BTA06-600SW	BTA16-600TW	BTB06-800B	BT138B-600F
BTA06-600CW	BTA16-600SW	BTA08-600C	BT138Y-600E
BTA06T-600CW	BTA16-600CW	BTA08-600B	BT138-600D
BTA06-600BW	BTA16-600BW	BT808-600C	BT138-600E
BTB06-600TW	BTB16-600TW	BTB08-600B	BT138-600F
BTB06-600SW	BTB16-600SW	BTA08-800C	BT138X-600D
BTB06-600CW	BTB16-600CW	BTA08-800B	BT138X-600E
BTB06-600BW	BTB16-600BW	BTB08-800C	BT138X-600F
BTA06-800TW	BTA16-800TW	BTB08-800B	BT138-800D
BTA06-800SW	BTA16-800SW	BTA12-600C	BT138-800E
BTA06-800CW	BTA16-800CW	BTA12-600B	BT138-800F
BTA06-800BW	BTA16-800BW	BTB12-600C	BT138B-800E
BTB06-800TW	BTB16-800TW	BTB12-600B	BT138B-800
BTB06-800SW	BTB16-800SW	BTA12-800C	BT138Y-800E
BTB06-800CW	BTB16-800CW	BTA12-800B	BT138-800
BTB06-800BW	BTB16-800BW	BTB12-800C	BT138X-800E
		BTB12-800B	BT138X-800

BT138X-800F	BT139B-800	BTA410X-600CT	BTA412Y-800BT
BT139B-600D	BT139-800D	BTA410X-600BT	BTA412Y-800CT
BT139B-600E	BT139-800E	BTA410Y-800CT	BTA312-800CT
BT139B-600F	BT139-800	BTA410Y-800BT	BTA416Y-600CT
BT139-600D	BT139X-800D	BTA410-800CT	BTA416Y-600BT
BT139-600E	BTA140-600	BTA410-800BT	BTA316-600BT
BT139-600F	BTA140-600G0	BTA410X-800CT	BTA416Y-800CT
BT139X-600D	BTA140-800	BTA410X-800BT	BTA416Y-800BT
BT139X-600E	BTA410Y-600CT	BTA312B-600CT	BTA201-800ER
BT139X-600F	BTA410Y-600BT	BTA412Y-600BT	BTA208X-1000CO
BT139B-800D	BTA410-600CT	BTA412Y-600CT	BTA308X-1000CO
BT139B-800E	BTA410-600BT	BTA312-600CT	BTA216Y-800B
BT139B-800F

قائمة أنواع العبوات النموذجية

TO-92

TO-251(IPAK)

TO-252(DPAK)

TO-220

TO-220F

TO-P3

TO-247

TO-126(SOT-82)

TO-223

TO-202

SOT-23

SOT-89

TO-263(D2PAK)

يمكن لـ YZPST توفير القائمة التالية منالترياكاتالتي هيتعادل العلامة التجارية نفسها أدناه

ترياك
الرمز	الجهاز	ITRMS (A)	IT AV (A)	VD RMS (V)	dv/dt (V/μS)	TQ(μS)	IG (mA)	مدخل بمستوى منطقي	رباعي	التغليف	العلامة التجارية	الشكل
MAC97A4	TRIAC	0.6	—	200	25	—	5	S1	4	TO-92	MOTOROLA	A2
MAC97A6	TRIAC	0.6	—	400	25	—	5	S1	4	TO-92	MOTOROLA	A2
FTO109MN	TRIAC	1	—	600	50	—	10	S1	4	STO-223	FAGOR	A1
Z0107MA	TRIAC	1	—	600	20	—	5	S1	4	TO-92	STM	A2
Z0109MA	TRIAC	1	—	600	50	—	10	S1	4	TO-92	STM	A2
Z0107NA	TRIAC	1	—	800	20	—	5	S1	4	TO-92	STM	A2
2N6342	TRIAC	4	—	200	5	2	100	لا	3	TO-220	MOTOROLA	E
2N6073A	TRIAC	4	—	400	5	5	60	S1	4	TO-126	S.ST./NJS	D
BT134-500E	TRIAC	4	—	500	50	—	10	لا	4	TO-126	PHILIPS	D
BT136-500D	TRIAC	4	—	500	50	—	10	S1	4	TO-220	PHILIPS	E
BT136S-600	TRIAC	4	—	600	50	2	70	لا	4	TO-252(D-PAK)	NXP	F
2N6075B	TRIAC	4	—	600	5	—	60	لا	4	TO-126	MOT./S.ST.	D
BT134-600E	TRIAC	4	—	600	50	—	10	لا	4	TO-126	PHILIPS	D
BT136-600E	TRIAC	4	—	600	50	—	10	لا	4	TO-220	PHILIPS	E
BT136-800	TRIAC	4	—	800	50	—	10	لا	4	TO-220	PHILIPS	E
TW6N400CZ	TRIAC	6	—	400	20	—	50	لا	3	201.C3(M6)	AEG	T
SC141D	TRIAC	6	—	400	50	—	50	لا	3	TO-220	G.E.	E
SC141E	TRIAC	6	—	500	50	—	50	لا	3	TO-220	G.E.	E
BT136-600D	TRIAC	6	—	800	50	2	10	S1	3	TO-220	PHILIPS	E
TW6N600CZ	TRIAC	6	—	600	20	—	50	لا	3	201.C3(M6)	AEG	T
BTA06-600B #	TRIAC	6	—	600	500	—	50	لا	4	TO-220	STM	E
BTB06-600C	TRIAC	6	—	600	500	—	35	لا	4	TO-220	STM	E
MAC3030-8	TRIAC	8	—	100	20	—	30	لا	4	TO-220	MOTOROLA	E
MAC228A6	TRIAC	8	—	400	25	—	10	لا	4	TO-220	MOTOROLA	E
Q4008L4 #	TRIAC	8	—	400	20	—	25	لا	3	TO-220	TECCOR	E
TIC226D	TRIAC	8	—	400	500	—	50	لا	3	TO-220	TEXAS	E
TW8N600UZ	TRIAC	8	—	600	20	—	50	لا	3	201.C3(M6)	AEG	T
Q6008L4 #	TRIAC	8	—	600	20	—	50	لا	3	TO-220	TECCOR	E
BT137-600E	TRIAC	8	—	600	50	—	10	لا	4	TO-220	PHILIPS	E
BTB08-600	TRIAC	8	—	600	250	—	50	لا	4	TO-220	STM	E
TIC226M	TRIAC	8	—	600	500	—	50	لا	3	TO-220	TEXAS	E
BTA08-600 #	TRIAC	8	—	600	250	—	50	لا	4	TO-220	STM	E
BT137-800E	TRIAC	8	—	800	50	—	10	لا	4	TO-220	PHILIPS	E
MAC218A10FP #	TRIAC	8	—	800	100	—	30	لا	4	TO-220	MOTOROLA	E
Q8008L5 #	TRIAC	8	—	75	75	—	50	لا	3	TO-220	TECCOR	E
CTBO8-1000C	TRIAC	8	—	200	200	—	25	لا	3	T0-220	CRYDOM	E
TW10N400CZ	TRIAC	10	—	20	20	—	50	لا	3	201.C3(M6)	AEG	T
BTA10-600 #	TRIAC	10	—	400	400	—	50	لا	4	TO-220	STM	E
BT139-600E	TRIAC	12	—	50	50	—	50	لا	3	TO-220	PHILIPS	E
MAC212A8FP #	TRIAC	12	—	100	100	—	50	لا	4	TO-220	MOTOROLA	E
BT138-600E	TRIAC	12	—	250	250	—	50	لا	3	T0-220	PHILIPS	E
TIC236M	TRIAC	12	—	400	400	—	50	لا	3	TO-220	الطاقة	E
BTA12-600B #	TRIAC	12	—	400	400	—	50	لا	3	TO-220	ST	E
BTA12-700SW #	TRIAC	12	—	40	50	—	50	لا	3	TO-220	ST	E
BT138-800E	TRIAC	12	—	50	50	—	10	لا	3	TO-220	PHILIPS	E
BTB12-800CW	TRIAC	12	—	500	500	—	35	لا	3	TO-220	STM	E
BTA12-800B #	TRIAC	12	—	400	400	—	50	لا	3	TO-220	STM	E
Q6015A #	TRIAC	15	—	25	25	—	50	لا	3	SWEDGE TO-3	TECCOR	V
TIC246D	TRIAC	16	—	400	400	—	50	لا	3	TO-220	TEXAS	E
BTA16-600B #	TRIAC	16	—	400	400	—	50	لا	3	T0-220	STM	E
BTA16-600SW #	TRIAC	16	—	40	40	—	10	لا	3	TO-220	STM	E
BTB16-600BW	TRIAC	16	—	400	400	—	35	لا	3	TO-220	STM	E
MAC320A6FP #	TRIAC	20	—	—	—	—	50	لا	3	TO-220	MOTOROLA	E
KS20A-600	TRIAC	20	—	500	500	—	45	لا	3	TO-48	JEENDA	G
BTA20-700BW #	TRIAC	20	—	500	500	—	50	لا	3	TO-220	STM	E
MAC223A6	TRIAC	25	—	300	300	—	50	لا	3	TO-220	MOTOROLA	E
TIC263D	TRIAC	25	—	450	450	—	50	لا	3	TO-3P	TEXAS	W
Q6025L6 #	TRIAC	25	—	300	300	—	80	لا	3	T0-220	TECCOR	E
BTA26-600B #	TRIAC	25	—	500	500	—	50	لا	3	TO-3P	STM	W
TIC263M	TRIAC	25	—	450	450	—	50	لا	3	TO-3P	TEXAS	W
BTA24-800BW #	TRIAC	25	—	1000	1000	—	50	لا	3	TO-220	STM	E
BTA26-800B #	TRIAC	25	—	500	500	—	50	لا	3	TO-3P	STM	W
CTB24-1000B	TRIAC	25	—	500	500	—	100	لا	3	TO-220	C3 SEMI	E
CTA25-1000B #	TRIAC	25	—	1000	1000	—	50	لا	3	TO-3P	C3 SEMI	W
Q6035P #	TRIAC	35	—	75	75	—	100	لا	3	TO-3 FASTPAK	TECCOR	X
SC265D	TRIAC	40	—	20	20	—	150	لا	3	TO-65	RCA	H
T6420M #	TRIAC	40	—	20	20	—	80	لا	3	1/4-28UNF-2	NJS	Y
Q6040K7 #	TRIAC	40	—	250	250	—	100	لا	3	TO-3P	TECCOR	W
BTA41-600 #	TRIAC	40	—	250	250	—	50	لا	4	TO-3P	STM	W
S25RIA120	TRIAC	40	25	500	500	—	—	لا	3	TO-65	JEENDA	H
KS50A-1200	TRIAC	50	—	500	500	—	150	لا	3	TO-65	JEENDA	H
S50RIA120	TRIAC	80	50	500	500	—	—	لا	3	TO-65	JEENDA	H
KS100A-1200	TRIAC	100	—	500	500	—	200	لا	3	TO-94	JEENDA	K
